Home > Products > Alloy pipe > astm a355 p22 seamless alloy steel pipe

astm a355 p22 seamless alloy steel pipe

Product Description








astm a355 p22 Seamless Alloy Steel Pipe

Product name

steel pipe

Brand

Zhongxing (by ourselves)

Specification

O.D :21.3mm -273mm

W.T.: 2.8mm - 30mm

Length

max 12000mm by fixed length or random length as per request .

Standard

DIN 17175,ASTM A335,A213,ASME 210,210C etc

Material

A213 T1, T2, T11, T5, T9, T22, T23, T91, T92

A335 P1, P2, P5, P9, P12, P11, P22, P91

ASME SA210 , SA210C (other material like SAE4130,4140,1541,27Simn,30CrMo, 12Cr1MoV , 15CrMo, 35CrMo etc )

Ends

Plain ends or beveled ends

Raw Material

Steel bar

Calculation of Theoretic Weight

? Kgs /m = {(OD – W.T ) *W.T }*0.02466

Marking

As per our standard or clients` request .

Package

Packing in bundles, special packing can be offered by customers' requirement

or contact, such as wooden packing outside the pipes and so on.

Certificate

Mill Testing Certificate

Usage

Alloy pipe applies to petroleum, chemical industry, electric power, boiler, high temperature resistant, low temperature resistant, corrosion resistant Alloy Pipe

Remark

We could produce as per client's special request .











Raw material : Steel bar













Alloy steel pipes is a kind of steel alloyed tube with other elements in amounts


of between 1 and 50% by weight to improve its mechanical properties.Alloying


elements are added to achieve certain properties in the material. As a guideline,


alloying elements are added in lower percentages (less than 5%) to increase


strength or harden ability or in larger percentages (over 5%) to achieve special


properties, such as corrosion resistance or extreme temperature stability.









ASTM A335 Seamless Ferritic Alloy Steel Pipe For High Temperature
Mechanical Properties
Grade Tensile strength(MPa) Yield strength(MPa) Elongation(%) Impact energy(J) Hardness
P11 415 205 22 35 163HB
P12 415 220 22 35 163HB
P22 415 205 22 35 163HB
P5 415 205 22 35 187HB
P91 585~760 415 20 35 250HB
P92 620 440 20 35 250HB






Mechanical Properties(Mpa):





Application : Alloy pipe applies to petroleum, chemical industry, electric power, boiler, high temperature resistant, low temperature resistant, corrosion resistant alloy pipe used. Our company has cooperative relation between the domestic agents. Alloy pipe can be made according to the customers requirements. .

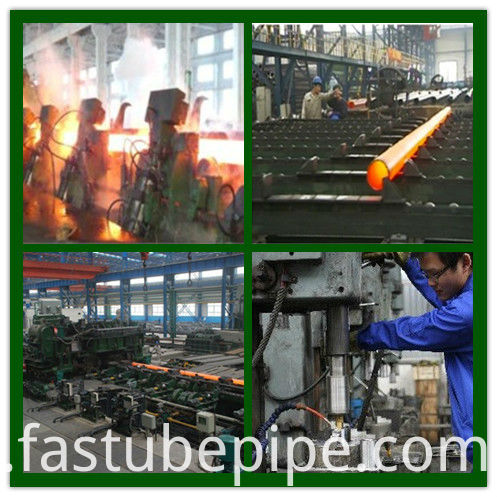

Production line and warehouse :

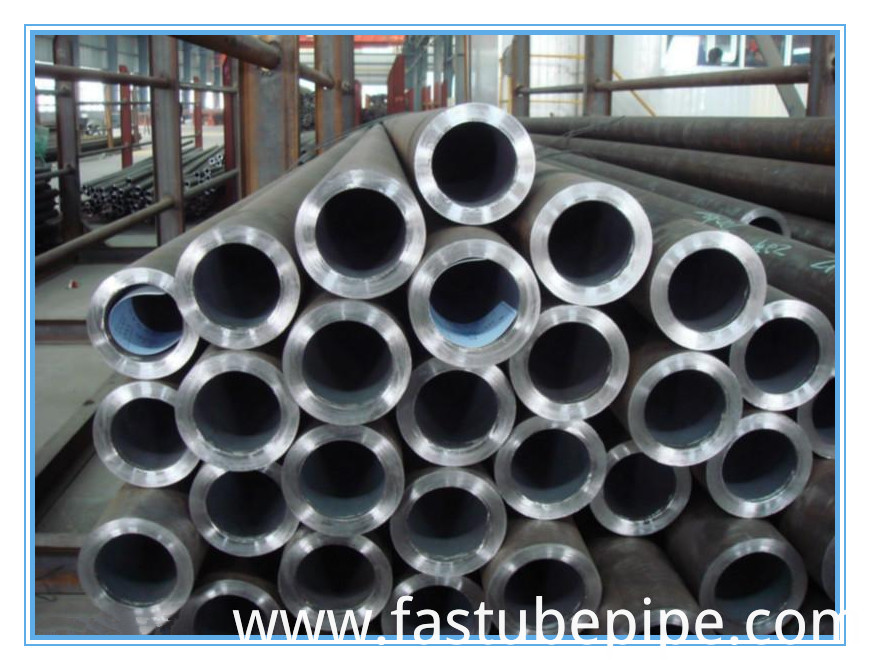

Products :

































Contact us if you need more details on Alloy Steel Pipe. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Seamless Alloy Steel Pipe、A355 P22 Alloy Pipe. If these products fail to match your need, please contact us and we would like to provide relevant information.
  • ASTM 400 Monel Seamless Alloy Steel Pipe

    Model NO.: 400 monel Trademark: hexion Transport Package: Carton Specification: customized Origin: Taizhou HS Code: 75071200 Introduction N04400 Monel 400 Nickel Alloy Pipe is a Nickel-Copper alloy with high strength and excellent corrosion resistance in a range of acidic and alkaline environments and especially suitable...

  • ASTM A106/A53 Seamless Carbon Steel Pipe Smls Tube

    Model NO.: ASTM A106/A53 Technique: Hot Rolled/Cold Drawn/ERW/Saw Usage: Pipeline Transport API 5L Steel Pipe: A106/A53/API 5L Length: 2-24m Trademark: DERBO Specification: NORMAL HS Code: 730419100 Type: Seamless Surface Treatment: as Customer′s Requirement Section Shape: Round Size: 1/2′′-58′′ Place of Origin: China...
